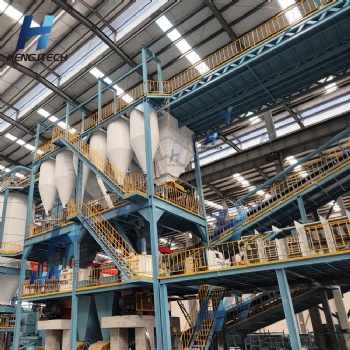

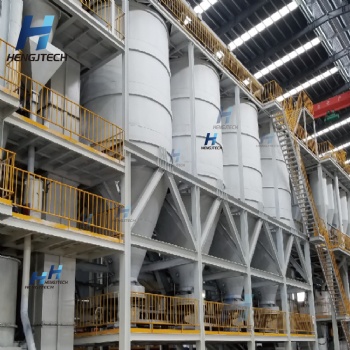

Clay Green Sand Reclamation Production Line

QINGDAO HUAHENGJI INTELLIGENT MACHINERY TECHNOLOGY CO.,LTD manufacture and design full scope of Clay Green sand casting equipment and green sand reclamation production line and sand molding line. including Clay green Sand Mixer, Sand Feeder and Conveyor,Cooling Bed,Sand Moulding machine and Sand Reclamation Machine，sand molding machine. We also design custom Production line of Clay Green sand casting production.

We supply Design scheme , equipments production and installation . Chose us,we will do all the rests for you .No worries and no need any doubts.

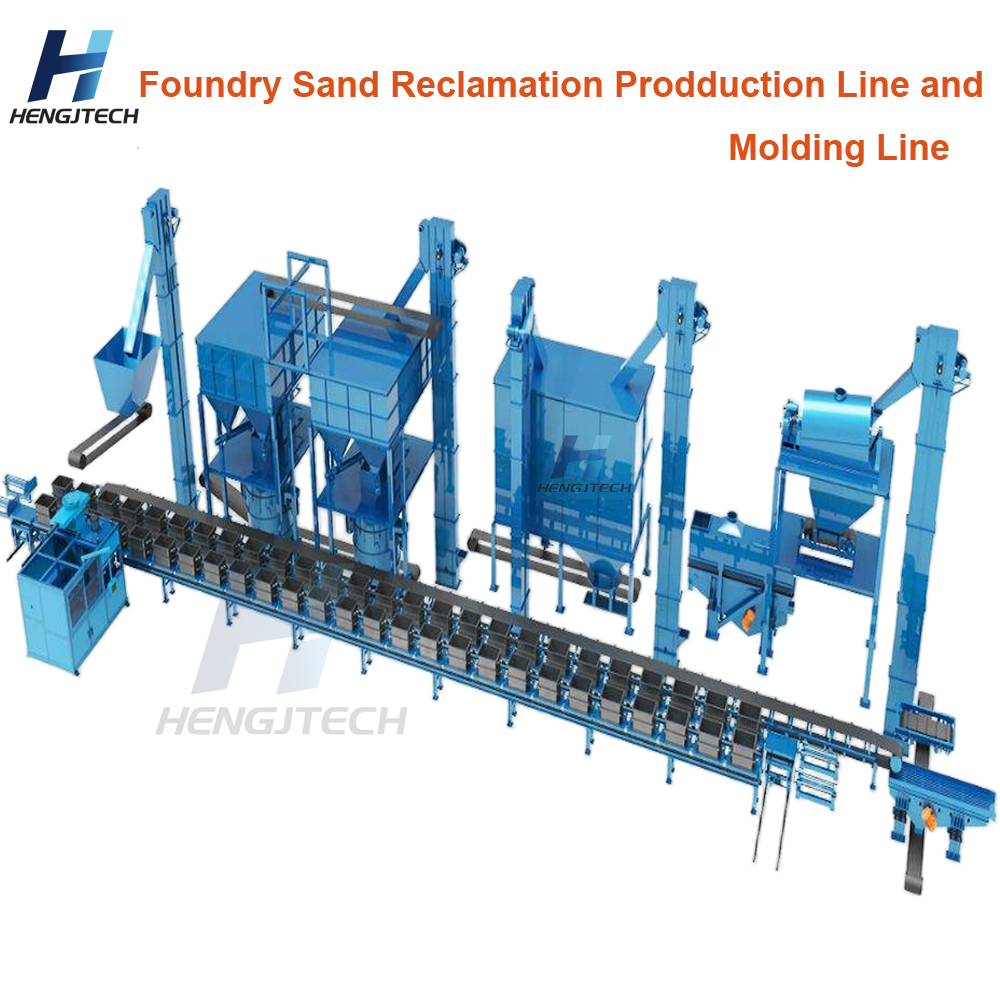

Green Sand Reclamation Production Line and sand molding line  - Product Introduction

Overview

The green sand reclamation production line is a professional, automated and high-efficiency sand recycling system specially developed for foundry industry green sand waste treatment. It aims to solve the problems of high new sand consumption, serious waste discharge and high production cost in traditional foundry production. Through systematic physical reclamation processes, the used green sand after casting molding and demolding is fully screened, purified, regenerated and conditioned to restore the original performance of sand grains, realizing cyclic reuse of foundry sand. This production line is an essential core equipment for modern foundries to achieve cost reduction, efficiency improvement and green environmental protection production.

Working Principle & Complete Process

The whole production line adopts continuous physical attrition and purification technology, without chemical addition, ensuring the original environmental protection characteristics of green sand. The core working principle is to remove surface clay film, residual binder, dust and fine impurities through grain-to-grain gentle friction, while avoiding sand grain breakage, so as to recover high-quality reusable sand. The complete workflow is as follows:

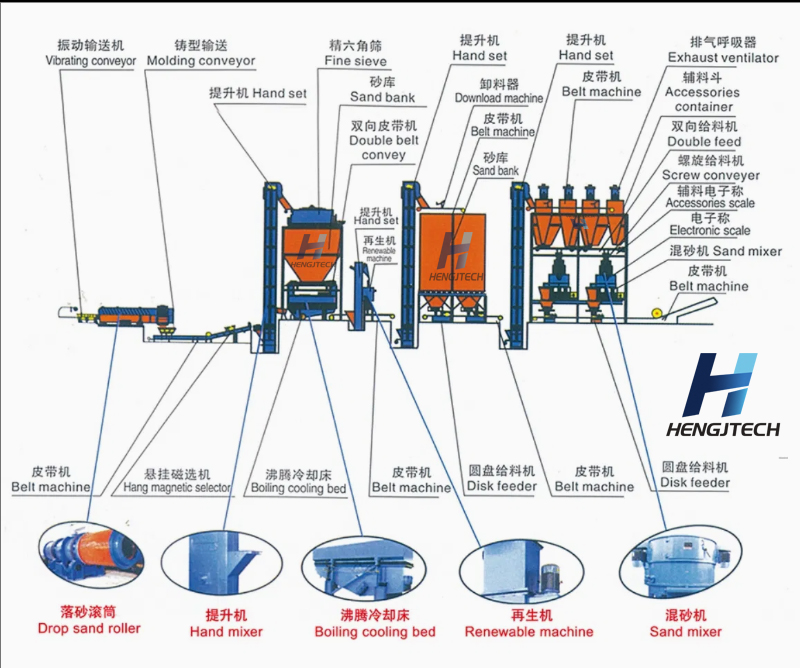

First, the waste green sand is transported to the vibrating feeding and screening unit for primary lump breaking and large impurity removal. Then, the magnetic separation system thoroughly removes iron scraps, metal debris and other ferromagnetic impurities mixed in the sand material. After that, the sand material enters the high-precision hexagonal screening equipment for multi-stage classification to screen out ultra-fine powder and invalid fine sand. Next, the core attrition reclamation unit performs deep friction cleaning to strip residual clay and binder layers on sand grain surfaces. Subsequently, the boiling cooling and aeration system adjusts the sand temperature, humidity and compactability to standard production parameters. Finally, the regenerated qualified sand is stored in the sand warehouse for recycling in molding production, and waste dust and impurities are collected uniformly by the exhaust dust removal system.

Core Equipment Configuration

This automated production line integrates multiple professional supporting equipment to form a fully enclosed and intelligent production system, including: vibrating conveyor, suspension magnetic separator, bucket elevator, fine hexagonal screen, boiling cooling bed, sand attrition reclaimer, disc feeder, screw quantitative feeder, electronic scale sand mixer, exhaust dust remover and intelligent sand storage system. All equipment is matched reasonably with stable operation, realizing full-process automated feeding, processing, conveying and storage, reducing manual intervention and improving production consistency.

Key Advantages

1. High Reclamation Rate & Stable Sand Quality

Adopting advanced gentle friction reclamation technology, the sand grain integrity rate is effectively guaranteed, with a sand reclamation rate of up to 90%. The regenerated green sand has stable compactability, good flowability and uniform grain size, fully meeting the molding requirements of various castings, and effectively avoiding casting defects such as sand holes and pores caused by unqualified sand materials.

2. Significant Cost Saving

The production line realizes long-term cyclic reuse of waste green sand, reducing the purchase volume of new foundry sand by 75%-90%. It also greatly cuts down the waste sand transportation and disposal costs. Meanwhile, the intelligent and integrated design reduces manual operation and equipment maintenance costs, bringing substantial economic benefits to foundry enterprises.

3. Environmental & Low-carbon Production

The whole process adopts physical treatment without chemical additives, no secondary pollution. Equipped with a professional dust removal and exhaust system, it realizes closed-loop production, effectively reducing workshop dust and improving working environment. It greatly reduces industrial solid waste discharge, helping enterprises meet environmental protection emission standards and achieve green and low-carbon production goals.

4. Intelligent & Low Maintenance Operation

The production line supports continuous 24-hour stable operation with high automation degree, simple operation and low failure rate. The core reclamation unit has no vulnerable moving parts in direct contact with sand materials, realizing ultra-low maintenance cost. The modular design is convenient for installation, debugging and later equipment maintenance and upgrading.

5. Strong Compatibility & Flexible Customization

It is suitable for all kinds of green sand casting processes and different types of castings such as auto parts, mechanical parts and hardware castings. The production capacity can be customized according to customer demand, covering small, medium and large foundry production lines, which can perfectly match the production scale of different enterprises.

Application Scenarios

Widely applicable to various foundry enterprises engaged in green sand molding production, including automobile casting, machinery manufacturing, hardware casting, pipeline fittings, agricultural machinery parts and other industries. It is the preferred supporting equipment for upgrading traditional foundry production lines and building energy-saving and environmentally friendly intelligent foundries.

Product Value

The green sand reclamation production line perfectly balances production efficiency, product quality, production cost and environmental protection benefits. It not only solves the pain points of high consumption and high pollution of traditional green sand casting, but also improves the automation and standardization level of foundry production. For foundry enterprises, it is an important equipment to enhance market competitiveness, realize sustainable operation and comply with industrial environmental protection policies.

Any requirement ,please contact Rabeca  qdhhxsjx@163.com
