S28 Series mobile lifting Continuous Sand Mixer

S28 (S28FS) series mobile (lifting) continuous sand mixer

Widely used for the mixing of self hardening sand for large cast iron, cast steel, and other castings. This machine is a mobile and adjustable lifting sand mixer with convenient operation and complete functions, and can be adjusted and selected according to different resin sand process characteristics. This machine mainly consists of a sand mixer, a walking mechanism, a sand hopper, an electrical control system, and a pneumatic control system.

Technical features:

The large arm of the sand mixer adopts a motorized rotation mode, and the small arm is manual.

Pre installed multiple liquid material addition functions to meet the needs of different ratios of surface sand, back sand, new sand, and recycled sand.

Adopting a split type sand mixing tank with a stainless steel inner lining for easy cleaning and maintenance; The mixed sand blade is embedded with a hard alloy blade, which has a long service life.

The machine head is equipped with a head and tail sand control device, and a deodorization and dust removal device.

Using hydraulic or electric push rods for lifting, the lifting range can be set according to user needs.

The use of a four link mechanism ensures that the boom is always in a horizontal position, with a compact and aesthetically pleasing structure.

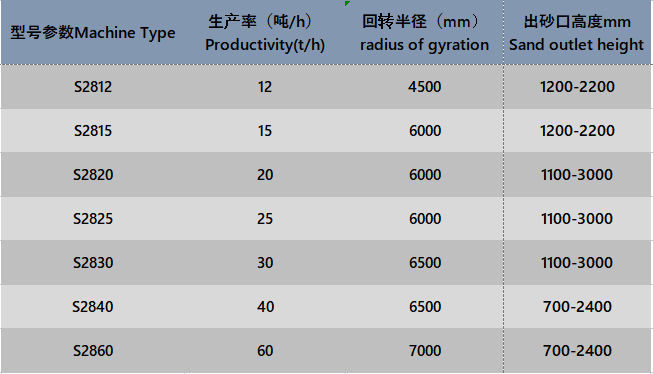

Technical parameters:
