L32 Series Sand Removal and Cooling BAREEL

There are two types of L32 series drop sand cooling and cleaning rollers, double layer drop yarn cleaning roller and single layer drop sand roller

The sand drop cooling drum is used for casting sand drop in the casting production line. The cooling and old sand crushing, coarse screening, casting sand drop, and cooling work are heavy and heavy, and are located in harsh working environments with severe high temperatures, dust, and noise. Therefore, it has always been an important and difficult process in casting production

1. Selection of main purchased parts and materials

①. ASAHI SN bearing with seat in Japan;

②. Drum material 16Mn steel production

③. Thickness of drum body 16mm

④. 36A-2 roller chain drive (High frequency quenching of tooth surface)

⑤. ZSY Hardened reducer

⑥. The guide rail shall be processed as a whole after welding to ensure the coaxiality

⑦. The riding wheel is made of industrial nylon to reduce noise and improve the service life of the equipment

2. performance description

This equipment is mainly used for sand dropping and cleaning of medium and small castings. It can separate casting from molding sand and casting from runner;

The rotating speed of the machine is low. At the same time, the hot and humid used sand binds the casting to form a cushion layer, which solves the sand falling damage of Thin-walled Casting, reduces the damage rate of casting, and has good comprehensive performance. The used sand is broken, cooled and coarse screened.

This is a highly efficient cooling screening machinery introduced by European technology, which integrated crushing, cooling and screening. The equipment is composed of two parts, the roller and roller screening, some spoon guide plates fixed into the rollers.

Working principle: once the hot sand enters the drum through humidification (No. 7 temperature and humidity measuring device), the hot sand pushing up from the bottom to the top and spraying down through the spoon guide plates. At the same time, the strong suction is carried out in the opposite direction of the used sand moving. A large amount of water evaporation takes away the heat and invalid dust inside the hot sand. After precise control of water addition and cooling of hot sand, the content of water and micro powders has also been positively controlled. The bentonite inside used sand has been pre matured, so that the efficiency of sand mixing and the quality of molding sand can be better guaranteed.

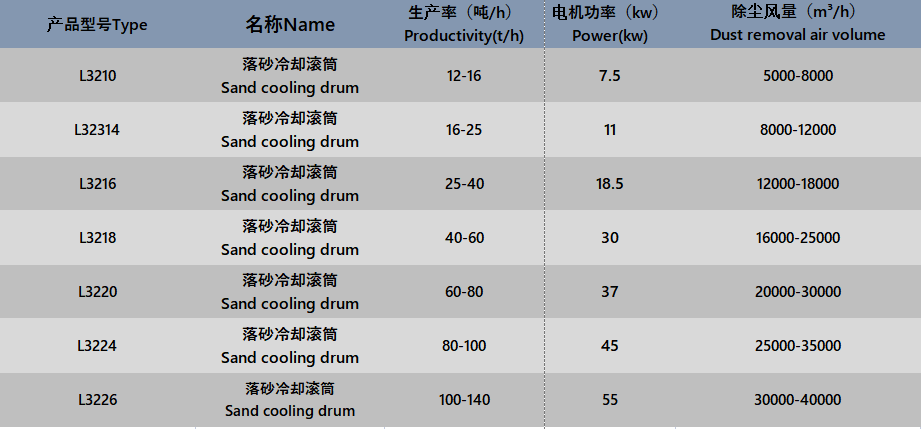

Technical Informations as follows:
