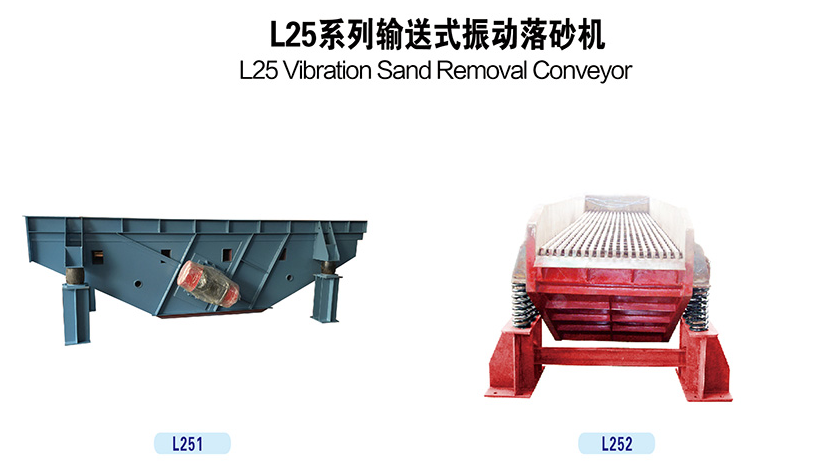

L25 Series Sand Removal Conveyor

Theory：

This Series of Barrels could be used to remove the sand from nmid-and small -sized castings made through the mechanical and

semi-mechanical pouring process in the casting plants .During the vibration ,the sand will move forward ,and the large groups will be broken .

Selection of main purchased parts and materials

①. Netherlands Vimarc company-New Lambeck/Italy WAM Company-OLONG vibration motor;

②. Side plate δ12mm steel plate manufacturing;

③. hole plate δ25mm steel plate plasma cutting;

④. 10.9-grade pre-stressed bolts with sleeve;

⑤. The installation mode of the patented design motor is safe and reliable.

This equipment is mainly used for sand falling of medium and small castings after pouring in the mechanized automatic or semi-automatic

molding line of foundry. It makes the molding sand separate from the casting, the separated sand mass is further broken,

and falls on the vibrating conveyor or belt conveyor through the grid holes, and the casting falls into the work box through the grid transportation.

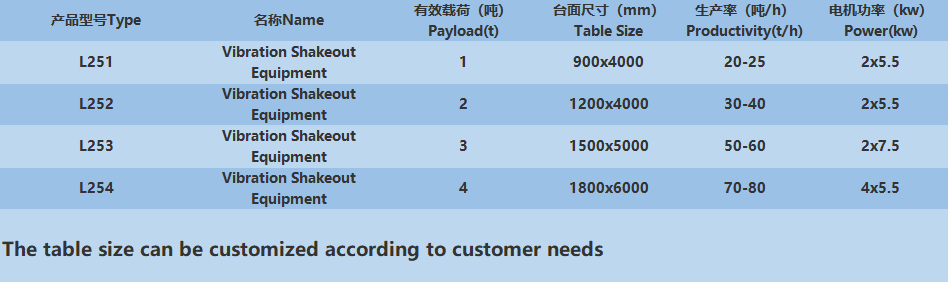

Main Technical Data：
