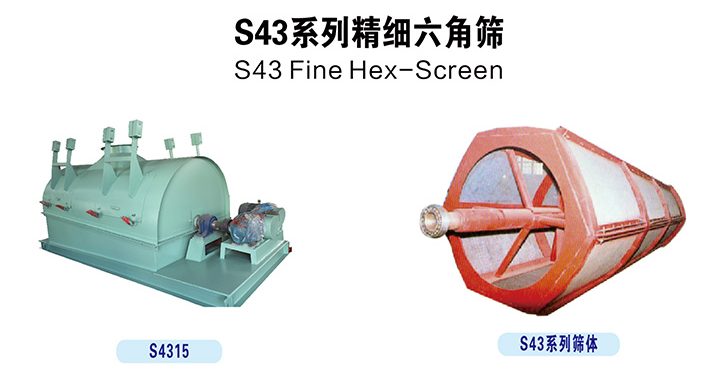

S43 Series Fine Hex Screen

Purpose:

This equipment is used for screening powder and granular materials in workshops such as casting, metallurgy, mining, chemical engineering,

 and building materials. At the same time of screening, ventilation and dust removal are added to cool down.

Features:

1. Smooth operation, reliable operation, and fine screening.

2.The Materialis fed through the large hex end ,which could increase the screen area by 30-40% .At about the the oretical rotation speed.

the material will clash down ward from the high end of Cylinder to realize the crushing and fine screening .

3.The Screen is made of cold-rolling stainless steel wires with large diameter,ensuring its long service life ,and could be

able to remove the hard particales with the size of more than 4-5mm in the cold sand,ensuring uniform sand quality and improving the yield of castings.

4.The Screen is fixed through tensioning and pressing to tighten its surface ,prevent brakeage ,improve rebunding crushing effect and facilitate replacement .

5.Powerful ventilation could be provided to control mud content to achieve the requireed cooling effect ,meanwhile ,the condensation and blcokage of the screen holes

due to moisture ,heat and additive materials could be reduced .

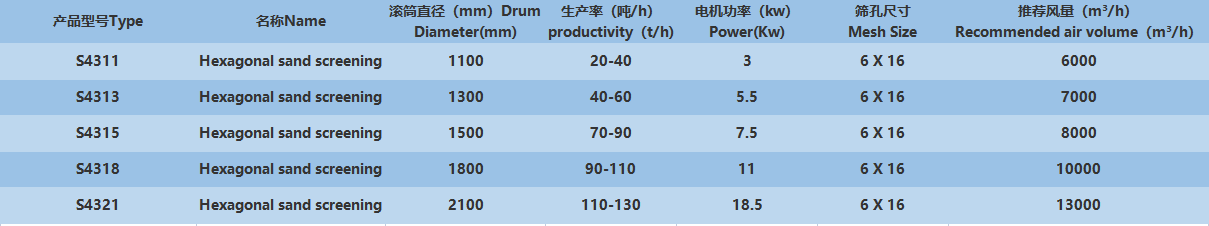

Main technical parameters:.
