GS High Rotor Sand Mixer Machine
USE:
The equipment is mainly used for the mixing of foundry sand. It can mix single sand for machine modeling, dry sand, self-hardening sand, sand and back sand, glass, ceramics, refractory, etc. The industry mixes various powdery materials.
Characteristics:
1.Thesandliningboardadoptsimported high-strength wear-resistantboard,and its wear resistance is several hundredtimesthat of the traditional gray-green stone cast slab. It completely solves the shortcomings of the sand slab of the machine basin, and the quality of the sand is obviously improved, and the life of the squeegee is prolonged. More than 5 times.
2. The double "S" type scraper is optimally matched with the high-speed squeezing rotor, with large mixing amount,strongmixing ability and good sand performance.
3. The latest side discharge door is flexible to open, reliable in operation and fast in discharging speed.
4. An access door is opened in the circle to facilitate inspection and cleaning of the inside of the basin.
5. The steel structure base makes transportation and installation of the machine very convenient.
6. This model applies for two national patents.

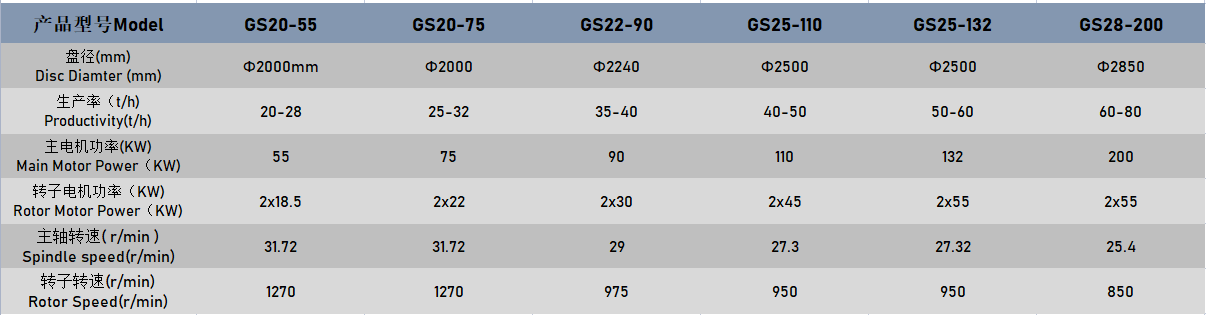

The Main Technical Parameters:
